Product
Customizing for optical design, machine housing and electrical machine, thermal solution, automatic assembly and measuring equipment and the other special requirements design.
Technology

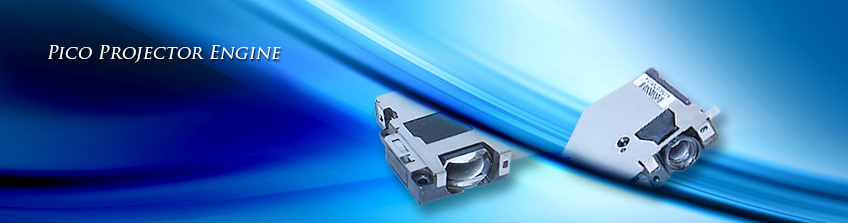

The height of our current optical projector is only 5.5mm, which is the thinnest module in the world and can be applied on tablets, mobile phones, pico projectors, HUD, and high-quality AR products.
Service
Provide a complete solution for customers’ various requirements, including optical structure design, components manufacture and automated lens module assembly.
Specifications
| Parts NO. | MicroDisplay | Resolution | Light Source | Engine components | Dimension | Throw Ratio | Brightness Lumen/Watt |
| PB0101 | 0.22”DMD | 640*360 | LED | Opto:16, Mecha:7 | 47*28*7 | 1.5 | 17 |
| PB0154 | 0.24”LCOS | 960*540 | LED | Opto:9, Mecha:5 | 30*32*7 | 1.5 | 7 |
| PB0158 | 0.24”LCOS | 960*540 | LED | Opto:14, Mecha:5 | 30*32*7 | 1.5 | 13 |
| PB0155 | 0.3”DMD | 854*480 | LED | Opto:16, Mecha:4 | 34*38*8 | 1.5 | 24 |
| PB0104 | 0.22”DMD | 640*360 | LED | Opto:16, Mecha:6 | 29*32*7 | 1.5 | 17 |
| PB0161 | 0.22”DMD | 854*480 | LED | Opto:14, Mecha:8 | Φ18*58 | 1.65 | 23 |
